TZ10 series engineering black plastic cable drag chain

Chian Factory Supply 10 Enclosed Cable Drag Chain Plastic Energy Towing Chain For CNC

---

Cable Drag Chain - The hoses & electrical cables connected to machinery parts in motion may get damaged as direct tension is applied on them; instead the use of Drag Chain eliminates this problem as the tension is applied on Drag Chain thus keeping the Cables & hoses intact & facilitating smooth movement.

Salient features include less weight, low noise, non-conductive, easy handling, non-corrosive, easy of assembly due to snap fitting, maintenance free, available in custom lengths, separators to segregate cables/hoses, can be used for side by side in case number of cables is more, increases cable/hoses life, modular design simplifies cable/hose maintenance.

The Cable Drag Chain Is assemblies of single units that are snap fitted to form chain to specific length.

Cable and hose carriers are flexible structures made of links that guide and organize moving cable and hose. Carriers enclose the cable or hose and move with them as they travel around machinery or other equipment, protecting them from wear. Cable and hose carriers are modular, so sections may be added or removed as needed without specialized tools. They're used in many settings, including material handling, construction, and general mechanical engineering.

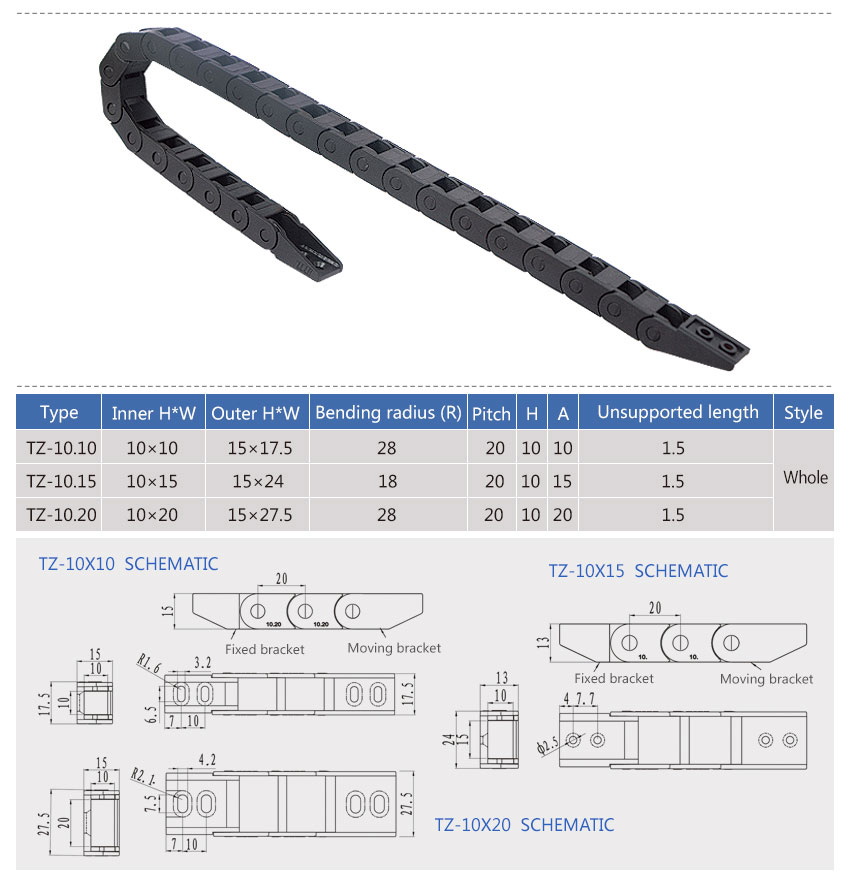

Model table：

Model	Inner H×W	Outer HX W	Bending Radius	Pitch	H	A	Unsupported length	Style
TZ-10.10	10X10	15X17.5	28	20	10	10	1.5	Whole
TZ-10.15	10X15	15X24	18	20	10	25	1.5
TZ-10.20	10X20	15X27.5	28	20	10	20	1.5



Application :

Cable drag chains can be used in a variety of applications, wherever there are moving cables or hoses. there are so many applications include; machine tools, process and automation machinery, vehicle transporters, vehicle washing systems and cranes. Cable drag chains come in an extremely large variety of sizes.
