TZ15 series engineering Plastic Cable Carriers Suppliers

Cable Carrier 45*75 Cable Chain 45*75 Mm MT Nylon Open Bridge Type Openable Cable Carrier Chain

---

The micro chains that are part of this product series are mainly characterized through their small size. Choose one of the available models, one-piece or two-piece and start enjoying the finest quality on the market. In addition to being distributed and assembled by an undeniable industry leader, this item also comes with various accessories that will improve your experience as a user even more. Choose one of the available upgrades, such as the one to the snap-open version, and start enjoying high quality, durability and performance at a brand new level.

The mini-series cable chain features an integrated structure and is suitable for highly dynamic projects. Our cable drag chains are available with a variety of accessories and options, including chains you can open, or attach to each other to increase the length.

Features and Benefits

1. Small pitch, low noise

2. Flammability class: UL V2

3. Integrated bracket with an optional tie-wrap clamp

4. Smooth outward appearance design, corrosion resistant, abrasion resistant, and gliding applications

Depending on the quality of raw materials, our machines feature an excellent performance, are manufactured under strict quality control, and have a number of excellent properties.

Details

1. Integrated design: the lids can be opened along the inner radius

2. Small pitch, quiet operation

3. Integrated strain relief fixed bracket, great for fixing and isolating cables

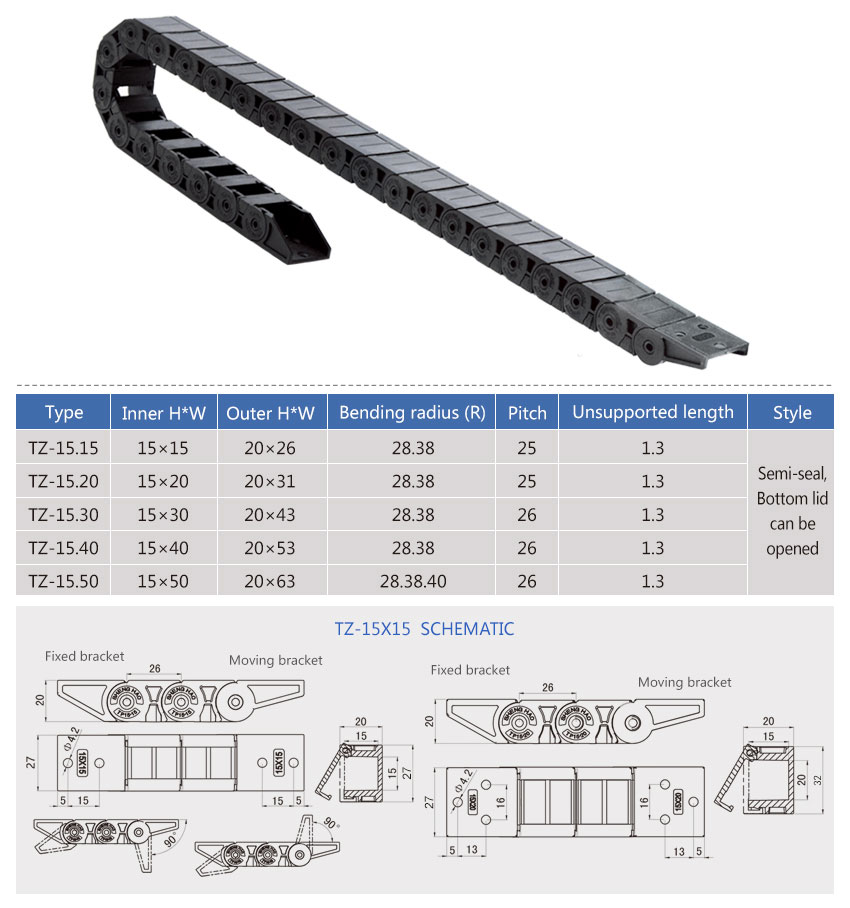

Model table：

Model	Inner H×W	Outer HX W	Bending Radius	Pitch	Unsupported length	Style
TZ-15.15	15X15	20X26	28.38	25	1.3	Semi-seal,Bottom lid can be opened
TZ-15.20	15X20	20X31	28.38	25	1.3
TZ-15.30	15X30	20X43	28.38	26	1.3
TZ-15.40	15X40	20X53	28.38	26	1.3
TZ-15.50	15X50	20X63	28.38.40	26	1.3

Application :

The mini plastic cable chains are primarily used for protecting cables in construction machinery, material handling, furniture industry, and packaging machinery textile industries.
