KQ30 series nylon66 material drag chain

Cable drag chains can be used in a variety of applications, wherever there are moving cables or hoses. there are so many applications include; machine tools, process and automation machinery, vehicle transporters, vehicle washing systems and cranes. Cable drag chains come in an extremely large variety of sizes.

---

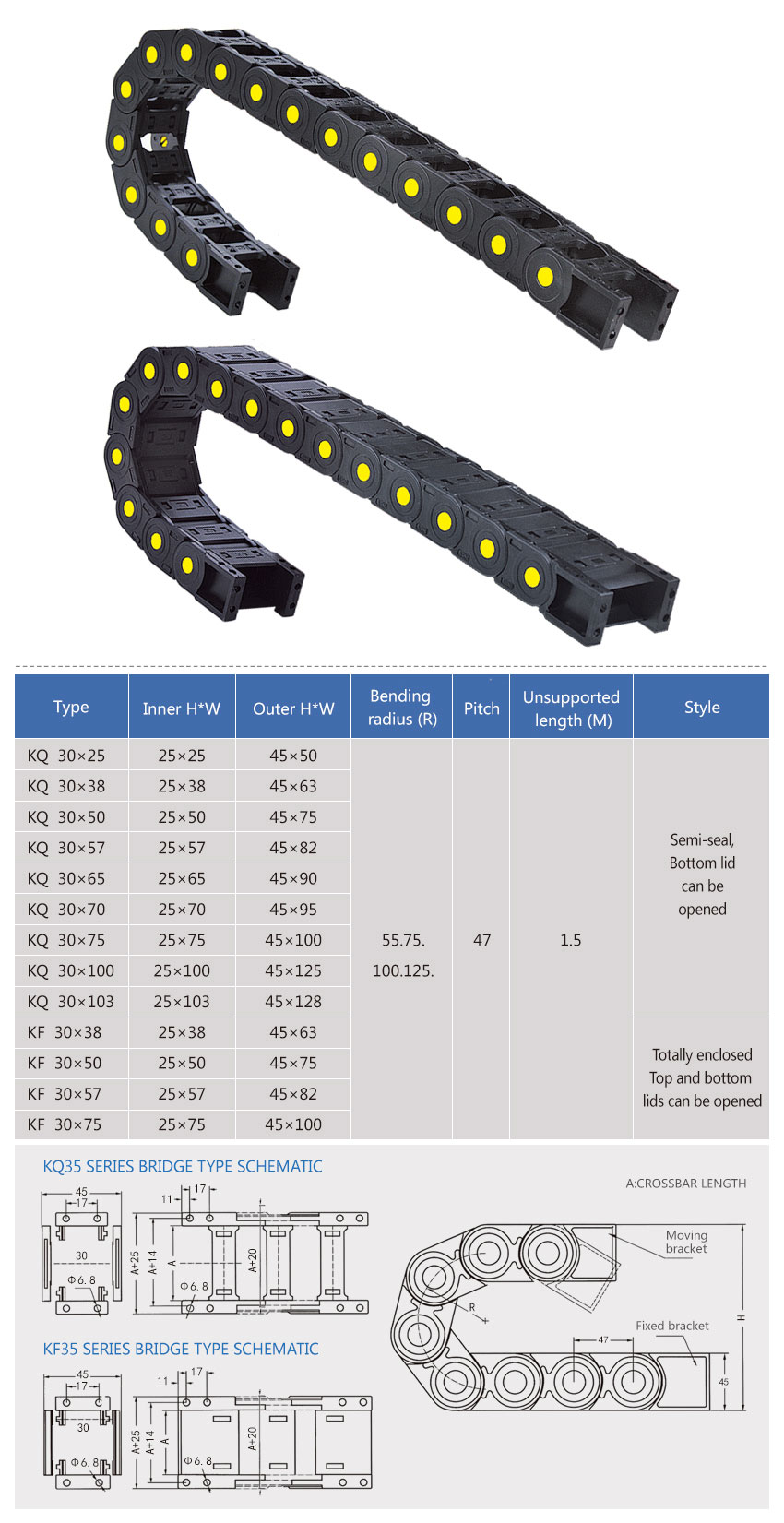

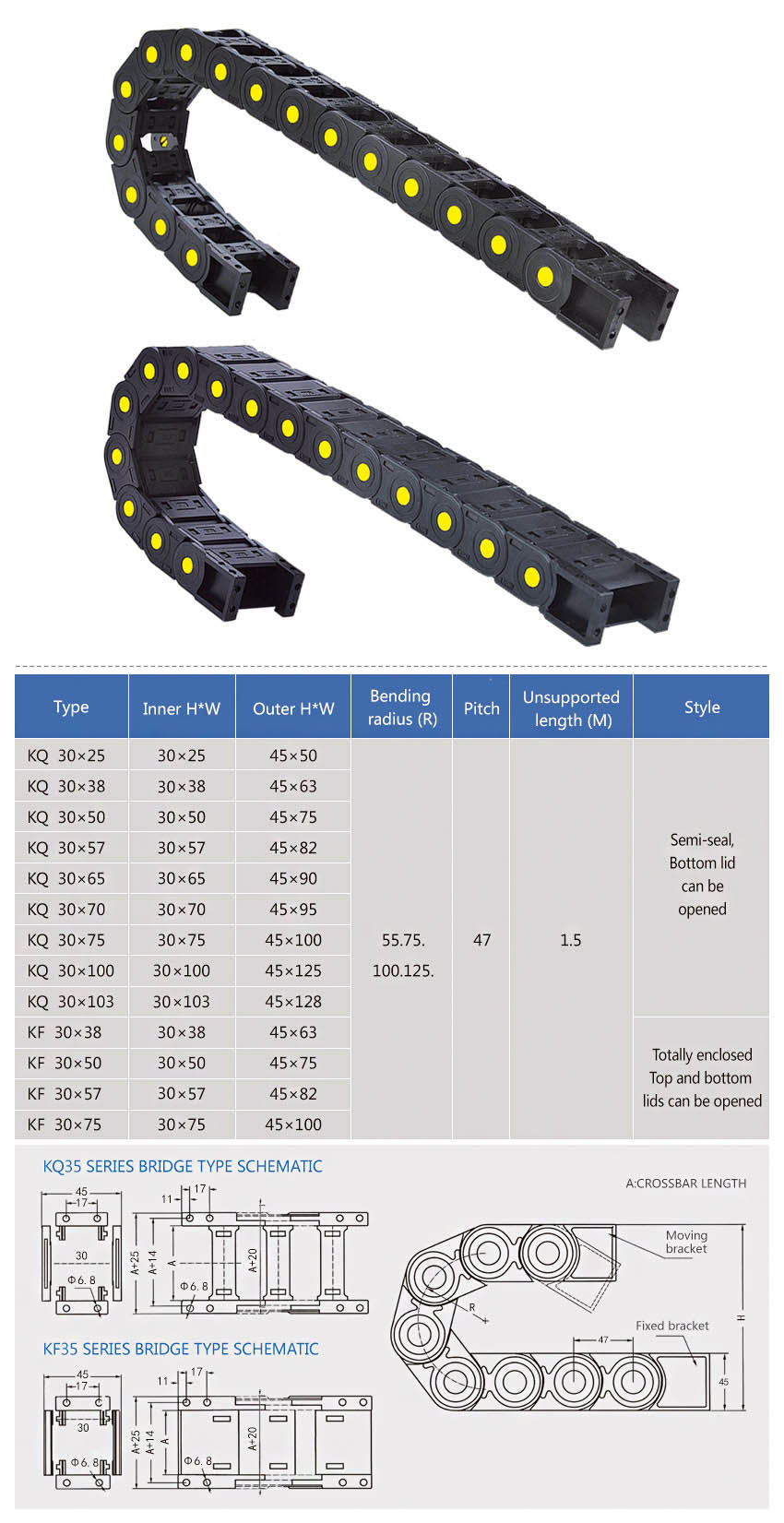

Product name: KQ30 bridge type drag chain

Material: Reinforced Nylon PA6, PA66

 Inner size: Height*width, 30*25,30*38,30*57,30*75,30*100,30*103mm

 Plenty of moulds for various sizes to choose. Also difference types, models. We can make new mould for special requirements

Style:Bridge type,top and bottom lids can be opened

Feature:Drag chain is used in reciprocating motion, which can play a role of traction and protection to the built-in cable, oil pipe, gas pipe, water pipe, etc

(1) The external shape of the towing chain is like a tank chain, which is composed of numerous unit links and rotates freely between links.

(2) The inner height, outer height and pitch of the same series of tow chains are  the same, and the inner width and bending radius of the tow chain can be selecteddifferently.

(3) The chain section of the unit is composed of left and right chain plates and upper and lower baffle plates. Each section of the drag chain can be opened, which is convenient for assembly and disassembly without threading. After opening the cover plate, cables, oil pipes, gas pipes and water pipes can be put into the drag   chain.

(4) Another divider can be provided to separate the space in the chain as required.

Application :

Tow chain is divided into bridge tow chain, fully closed tow chain and semi-closed  tow chain according to the different use environment and use requirements.

Bridge type drag chain is used in reciprocating motion, which can play a role in traction and protection of built-in cables, oil pipes, air pipes, water pipes, etc.  Drag chain has been widely used in CNC machine tools, electronic equipment, glass machinery, injection molding machine manipulator, handling machinery, plastic machinery,  lifting equipment, woodworking machinery, automobile industry, industrial vehicles, metal processing machines, machine tools, casting machinery, port equipment and other industries.
