KQ35 series drag chain cable carrier

Plastic bridge Cable Chain with Low Price New Type Drag Chain

---

The characteristics of cable drag chains:

★ Suitable for use in reciprocating, the built-in cable, tubing, trachea, water pipes can be trailed and protected.

★ Each section of the drag can be opened, easy to install and repair Low noise, wear-resistant, high-speed exercise during exercise.

★ The towline has been widely used in CNC machine tools, electronic equipment, stone machinery, glass machinery, door and window machinery, injection molding machines, robots, lifting transport equipment, automated warehouses. The structure of the nylon towline

★ Silk shape is similar to the tank chain, consisting of many unit chain sections, and the link between the links is free. R can have different options.

★ The unit link is composed of left and right chain plates and upper and lower covers. The towline can be opened. It is convenient to remove, no need to thread, open the cover, tap, tubes, trachea In the tow chain.

★ Separator can be provided to separate the inner space in the towline.

35 Series engineering towline basic parameters

★ Material: Enhance nylon, high pressure and tensile load, good toughness Elastic wear resistance flame retardant. Performance is stable during high and low temperature, can be used outdoor. The highest acceleration can reach 5 m / sec 2 (depending on the specific speed, acceleration).

★ Operation life: Under normal overhead use, the number of times can reach 50,000 times (depending on the performance of the specific life). Nylon towline structure; in combination with a single chain plate and the crossbar, the chain plate has an adjustment port and the axial pin of the reinforced connection, the crossbar is a component representing the inner width, and the mouth segment at both ends can be only The buckle chain will not be separated. The chain plate and crossbar can be assembled at will, and the chain board can be opened at will, which is convenient for installation and maintenance. Plastic tow chain material; enhanced toughen PA66, high resistance and tensile load capacity, have good toughness high elasticity and wear resistance. High and low temperature-80-260 performance is stable, can be used in open-air environment. Tolerance , Oil resistant, salt and have a certain acid and alkali resistance

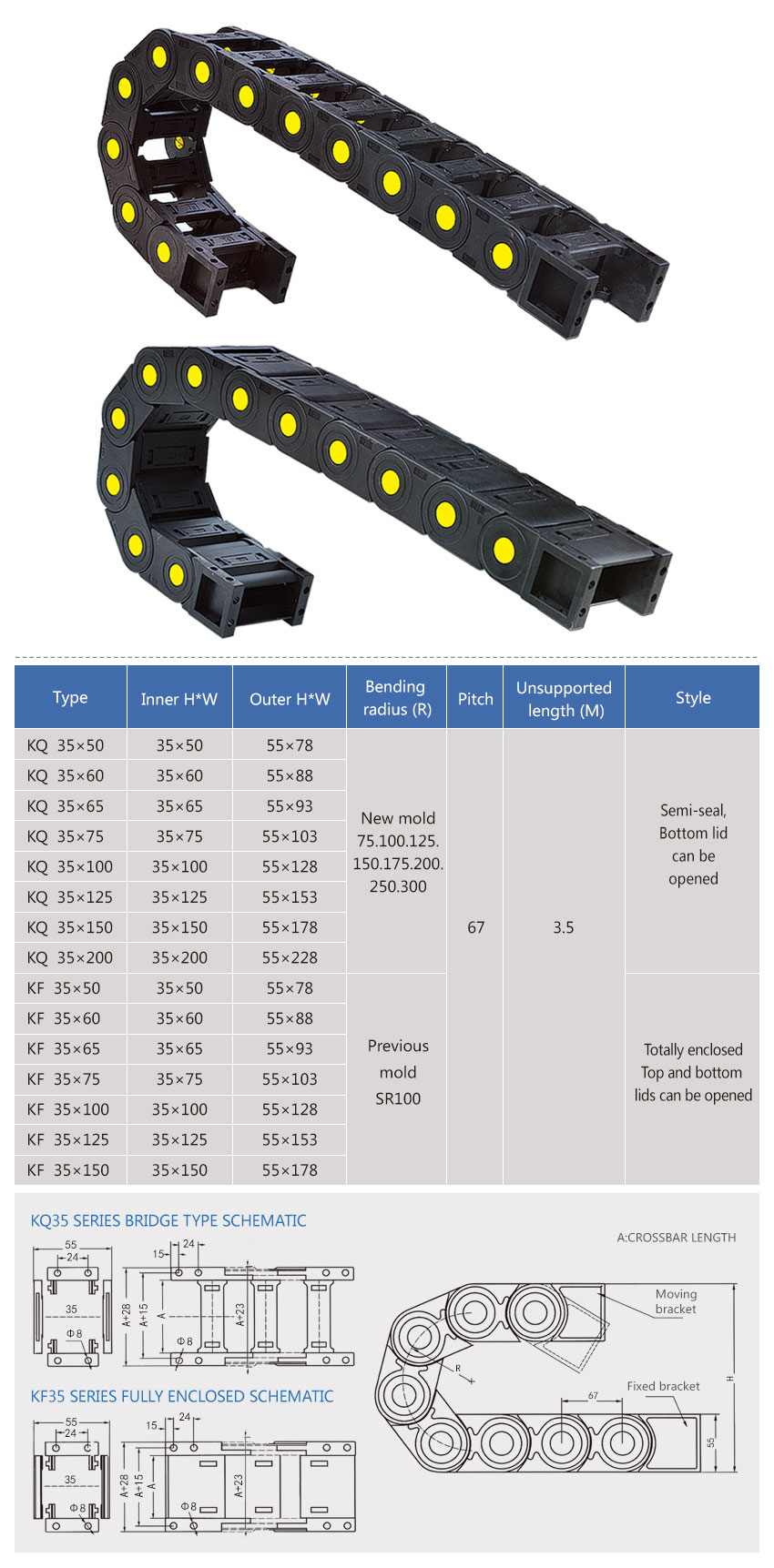

Model table :

Model	Inner H×W	Outer H*W	Style	Bending Radius	Pitch	Unsupported length
KQ 35x50	35x50	55x78	Bridge type Top and bottom lids can be opened	75.100. 125.150.175.200.250.300	67	3.5m
KQ 35x60	35x60	55x88
KQ 35x65	35x65	55x93
KQ 35x75	35x75	55x103
KQ 35x100	35x100	55x128
KQ 35x125	35x125	55x153
KQ35x150	35x150	55x178
KQ 35x200	35x200	55x228
