KQ55 series flexible cable drag chain

Cable Drag Chain Cable Chain Flexible Plastic Cable Carrier Drag Chain With National Patents

---

Drag chains are simple guides that are used to encompass different types of hoses and cables.

A drag chain helps to minimize the wear and tear on the hose or cable it protects, while also helping to ease the degree of the tangle that can sometimes occur with extended lengths of hose. As such, the chain can also be seen as a safety device.

Cable drag chain is used on various types of machinery as a means of safety and efficiently conveying power, electrical, air, or fluid (or a combination of these) to equipment in motion. Drag chain is designed to be maintenance free and to protect cables and hoses from abrasion, wear and twisting. A wide variety of options are available.

Service life:Under normal condition,5 million reciprocating motions can be reached (which is also related to the operating conditions.)

Resistances:It is oil and salt resistant.

Installation for cable drag chain  : Put a screw driver vertically into the opening hole at both ends of the cover and then open the cover .put the drag chain for cables and oil pipes according to the instructions provided .put the cover back .note that the fixed end and the moving end of a cable should be fixed solidly

when used in a long sliding service ,it is recommended to use some supporting rollers or guide groove , it will be perfect then.

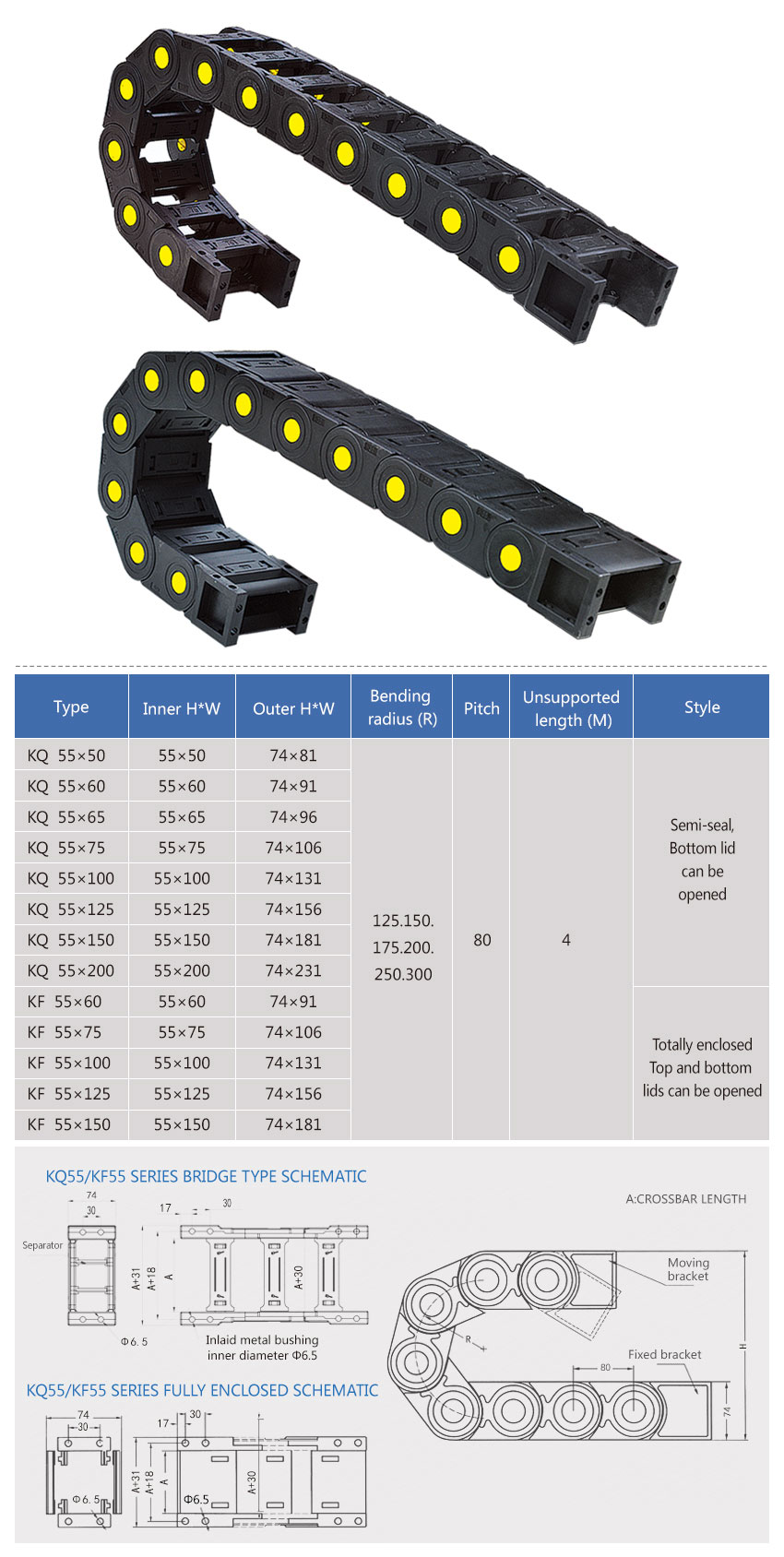

Model table :

Model	Inner H×W (A)	Outer H*W	Style	Bending Radius	Pitch	Unsupported length
KQ 55x50	55x50	74x81	Bridge type Top and bottom lids can be opened	125.150.175.200.250.300	80	4m
KQ 55x60	55x60	74x91
KQ55x65	55x65	74x96
KQ 55x75	55x75	74x106
KQ55x100	55x100	74x131
KQ 55x125	55x125	74x156
KQ55x150	55x150	74x181
KQ 55x200	55x200	74x231



Characteristics and Applications of Drag Chains:

1. The product can be used for such locations where reciprocating, of motions are required so that internally internally installed cables,oil pipes,gas tubes and water tubes can be dragged and protected.

2. Each joint of the chain can be opened up so as to facilitate repairs and maintenance.It gives low noises and is of anti-wearing while running.It can also be operated under high speed.

3. The drag chains have already extensively used in digital-controlled machine tools,electronic equipment,machinery for stone industry,machinery for glass industry,machinery for doors and windows,moulding injectors,manipulators,lifting and transport equipment and automatic warehouses,etc.
