KF20 series enclosed cable drag chain carrier

Nylon Chain Cable Chain Nylon Flexible Energy Cable Guiding Tray Drag Chain

---

Cable Drag Chain - The hoses & electrical cables connected to machinery parts in motion may get damaged as direct tension is applied on them; instead the use of Drag Chain eliminates this problem as the tension is applied on Drag Chain thus keeping the Cables & hoses intact & facilitating smooth movement.

Standard cable and hose carriers have an open design and are used in general purpose applications. Heavy-duty steel cable and hose carriers also have an open construction but are suitable for more demanding environments than standard carriers. Enclosed cable and hose carriers fully encase conductors to provide more protection from debris than open designs. Multiaxis cable and hose carriers turn and flex in any direction and are commonly used in robotics applications.

advantage:

high degree of protection against mechanical damage of different conductors,

high-speed movement of equipment and machinery,

the ability to use the whole length of the track as a work area.

Trucking current feeder is a necessary component of any industrial machinery, machine tool, crane, - cables, wires, hydraulic and pneumatic hoses, which are constantly exposed to mechanical and climatic influences.



Plastic and steel energy chains may be used in a temperature range from -40 ° C to + 130 ° C.

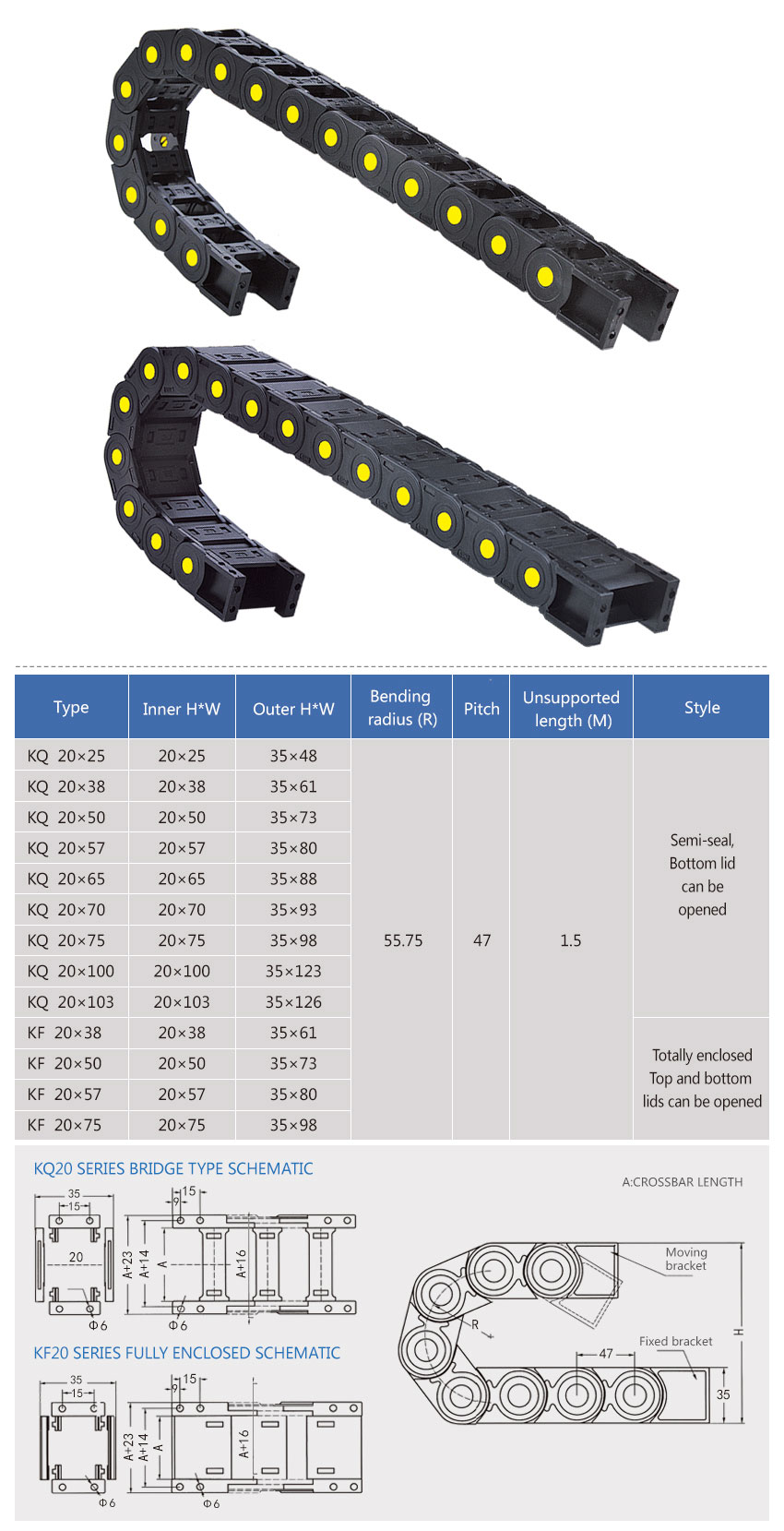

Model table :

Model	Inner H×W	outer H*W	Style	Bending Radius	Pitch	Unsupported length
KF 20x38	20x38	35x61	Totally enclosed Top and bottom lids can be opened	55.75	47	1.5m
KF 20x50	20x50	35x73
KF 20x57	20x57	35x80
KF 20x75	20x75	35x98



Application :

Cable drag chains can be used in a variety of applications, wherever there are moving cables or hoses. there are so many applications include; machine tools, process and automation machinery, vehicle transporters, vehicle washing systems and cranes. Cable drag chains come in an extremely large variety of sizes.
