KF25 series plastic energy cable chain

Flexible Cable Chain Manufacturer Cable Chain Flexible Cable Chain Channel

---

Plastic Nylon PA66 cable drag chains, full-closed type new design black color customized button color.

KF25 serious small size full-closed combined cable drag chains, we have 25*38, 25*50, 25*57, 25*75 , four type, and the bending radius we have R55/75/100/125/150. If your cables or tubes more large, you can choose other big size cable chains.

Product specifications are defined by height * inner width, the unit is MM, and the unit price refers to the inner length of 1 meter including the fixed joints at both ends.

The height of the drag chain after bending = bending radius * Z + outer height

For example: 25*38, bending radius R55

The total height of the drag chain after bending=55*2+40=1500mm

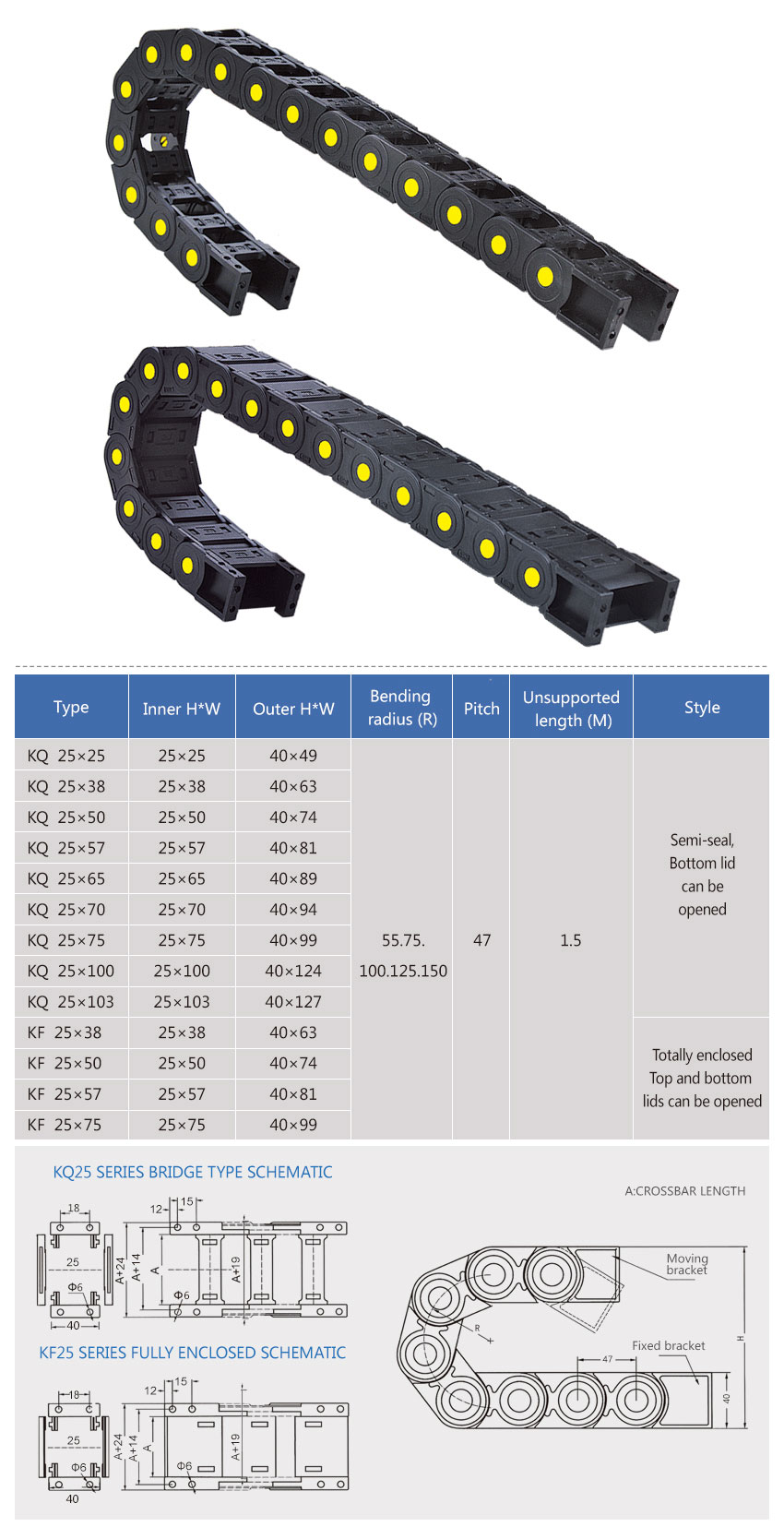

Model table :



Model	Inner H×W	outer H*W	Style	Bending Radius	Pitch	Unsupported length
KF 25x38	25x38	40x63	Totally enclosed Top and bottom lids can be opened	55.75. 100.125.150	47	1.5m
KF 25x50	25x50	40x74
KF25x57	25x57	40x81
KF25x75	25x75	40x99



Application :

1. It has high pressure and tensile load, good toughness, high elasticity and wear resistance, flame retardant, stable high and low temperature performance, and can be used outdoors

2. Resistance: oil resistance, salt resistance, and certain acid and alkali resistance.

3. Long operating life.

Application classification: It is suitable for the occasion of repeated movement, and it can pull and protect the built-in cables, oil pipes, air pipes and water pipes. It is often used in CNC machine tools, electronic equipment, stone equipment, glass machinery, door and window machinery, injection molding machines, manipulators, lifting transportation, automated warehouses, etc.
