KF35 series cable ladder chain carrier drag chain

Cable Chain Cable Chain Flexible Cable Chain Channel

---

Product name:Fully enclosed plastic drag chain

Material: Reinforced nylon, good toughness and wear resistance, acid and alkali resistant ability.

Resistance: oil resistance, salt resistance, and a certain acid, alkali resistance

Operating Life: Under normal use, up to 5 million reciprocating motion.

Fully enclosed plastic drag chain materials are made of high temperature resistant and flame retardant plastic materials.  After adding nylon PA66 in a certain proportion, the wear resistance of bearing capacity is significantly improved.The high-speed silent drag chain looks like a tank chain, which is suitable for reciprocating motion occasions, and can traction and protect the built-in cables, oil pipes, air pipes, water pipes, etc.Each section of the drag chain can be opened for easy installation and maintenance. Low noise, wear resistance, high-speed movement during exercise

Selection of Drag chain:

High: Select the built-in cable, tubing, the trachea and conduit maximum height for reference, the height of the drag chain at least 10% of the remaining space.

Wide: Choose the built-in cable, tubing, trachea, the sum of its outer diameter for reference, the width of the drag chain at least 10% of the remaining space.

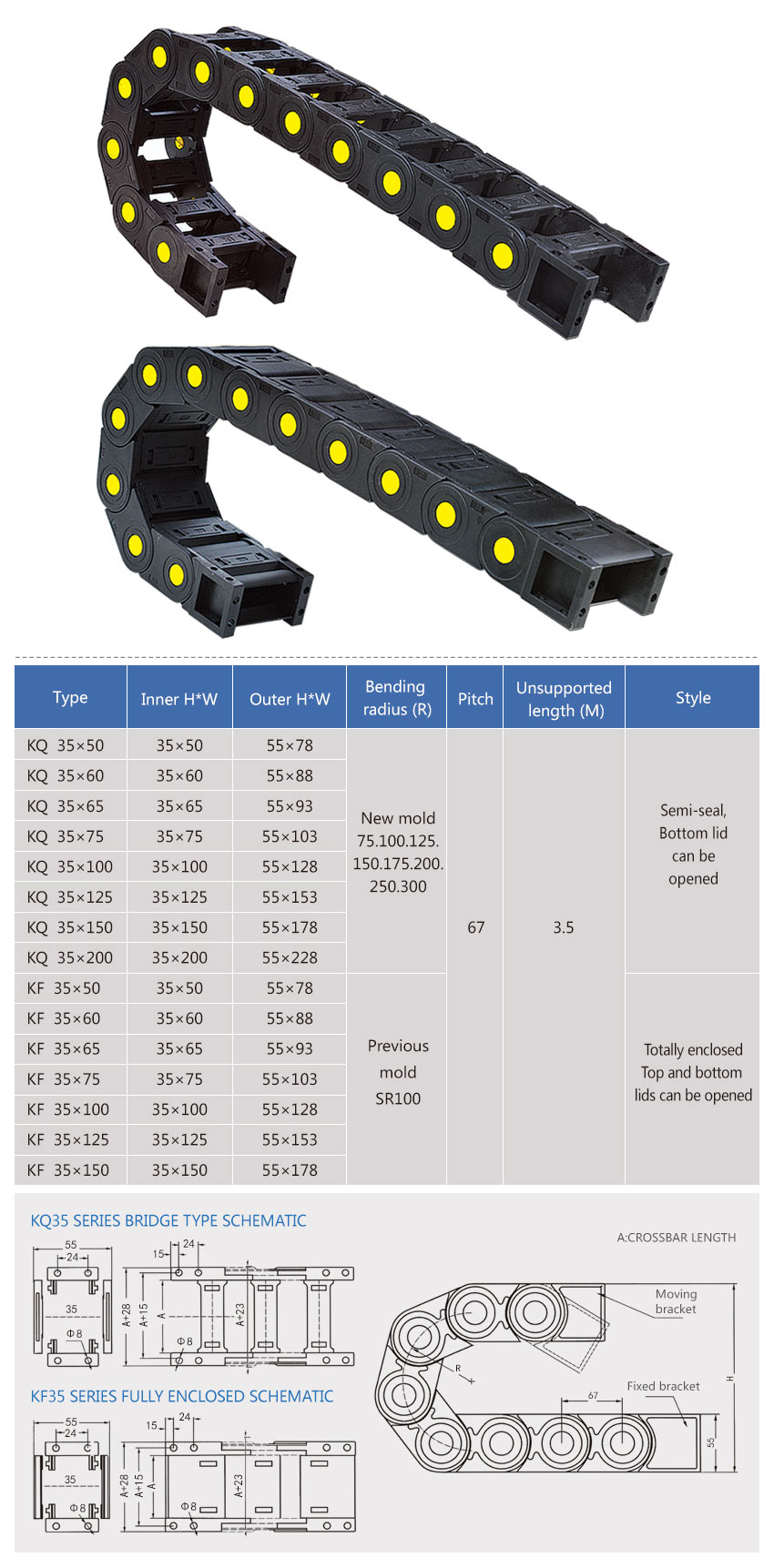

Model table :



Model	Inner H×W	Outer H*W	Style	Bending Radius	Pitch	Unsupported length
KF 35x50	35x50	55x78	Totally enclosed Top and bottom lids can be opened	75.100. 125.150.175.200.250.300	67	3.5m
KF35x60	35x60	55x88
KF35x65	35x65	55x93
KF35x75	35x75	55x103
KF35x100	35x100	55x128
KF35x125	35x125	55x153
KF35x150	35x150	55x178



Application :

Drag chain is used in reciprocating motion, which can play a role of traction and protection to the built-in cable, oil pipe, gas pipe, water pipe, etc.  Drag chain has been widely used in CNC machine tools, electronic equipment, glass machinery, injection molding machine manipulator, handling machinery, plastic machinery, lifting equipment, woodworking machinery, automobile industry, industrial vehicles, metal processing machines, machine tools, casting machinery, port equipment and other industries
