KF45 series plastic cable drag chain carirer

brand new heavy duty cnc plastic double-row cable drag chain

---

Operation life; in normal use, the experience of a device manufacturer can reach 8 million reciprocating motion, the selection of the cable nylon drag chain, the original: the built-in cable, tubing, trachea, water pipe, etc. As a reference height, add at least 10% high space as the torch. If the overlap is used as a reference height after overlapping.

◆ Wide: Select some cable, tubing, trachea, water pipe, etc. The sum of the outer diameter and the width of the drag chain and has a width space of at least 10%.

◆ Bend radius: Select the maximum bend radius in the built-in cable, tubing, trachea, water pipe, etc., and stay 10 % Or more space. Cable drag chain built-in cable, tubing, water pipe, trachea placement

◆ There should be a 15% remaining space, allowing the built-in cable, tubing, etc. to be freely movable, and the drag chain does not cause tension in the radius direction.

◆ The wires with large diameter should be laid separately, the weight is distributed, and the separator can be separated by the separator.

◆ When running at high speed or high frequency, try to make the wires separately from each other, not to overlap, in the cable, When the trachea, tubing, etc., it is recommended to use a separator. Installation of plastic cable drag chain

◆ Use the appropriate flat screwdriver, vertically insert the open hole on both ends of the cover, open the cover, and put the cable, tubing, etc.

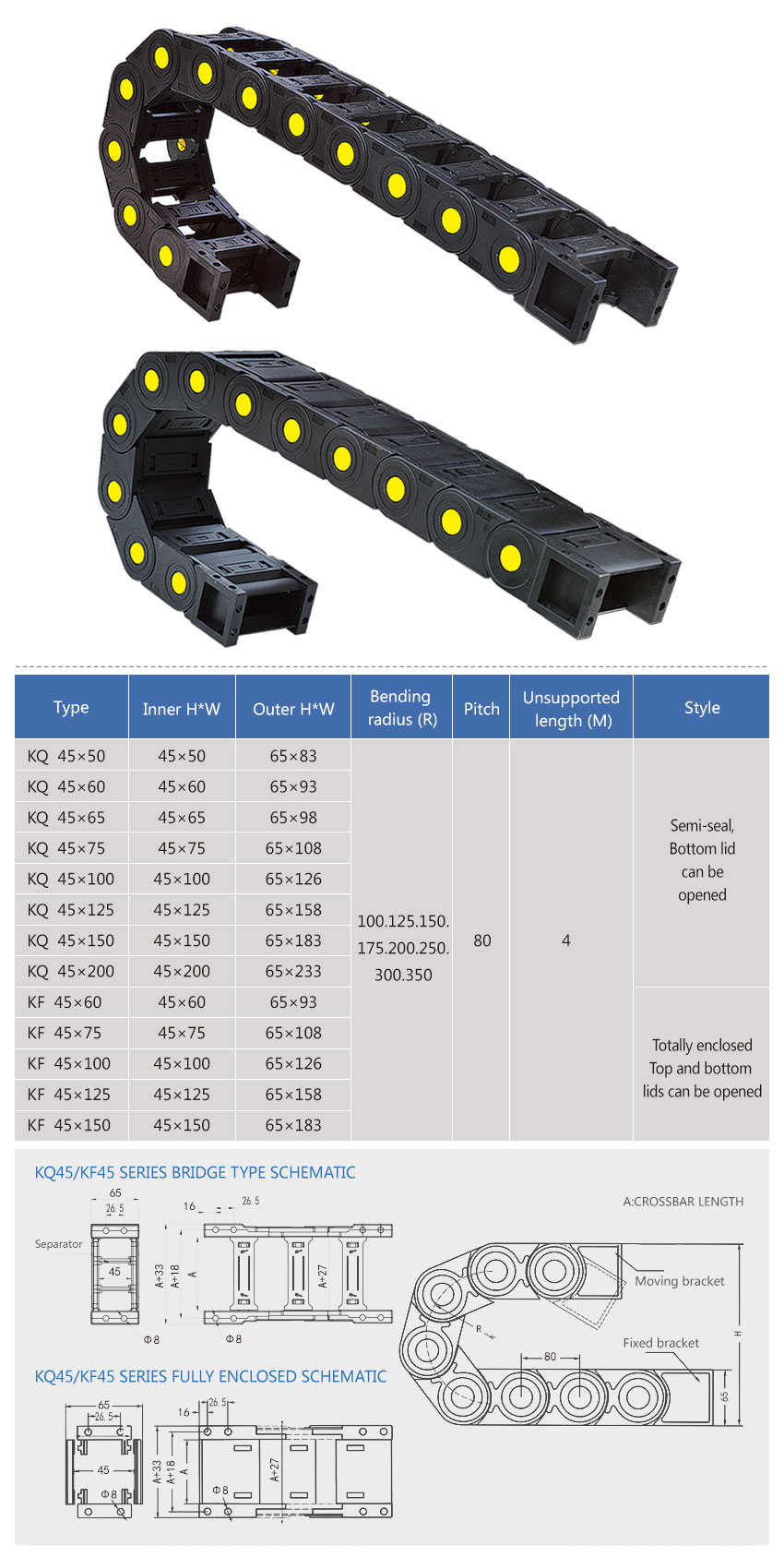

Model table :

Model	Inner H×W	Outer H*W	Style	Bending Radius	Pitch	Unsupported length
KF 45x60	45x60	65x93	Totally enclosed Top and bottom lids can be opened	100.125.150.175.200.250.300.350	80	1.5m
KF45x75	45x75	65x108
KF45x100	45x100	65x126
KF45x125	45x125	65x158
KF 45x150	45x150	65x183
