KF55 series Plastic Cable Carriers Suppliers

Plastic drag chains supplied by Chinese manufacturers, customizable color plastic drag chains

---

1. The KF series cable carrier chain is a fully enclosed type. The chains can effectively prevent dust particles and debris generated in high temperature processes from entering the chain. This type of cable chain can be quickly opened along the inside or outside radius, and assembled quickly. The modular design makes it easy to cut or extend the chain length based on application needs.

2. The groove equipped with an separator is able to isolate different energy

sources, making energy transportation safer and more efficient. We suggest

users use an separator  when a: there are different loads such as hydraulic pipes, water pipes, gas pipes and cables, or b: the loads are the same, but the quantity is large.

3. The limiting block has added to the length of the overhead line, which has significantly extended the lift of the cable carrier chain.

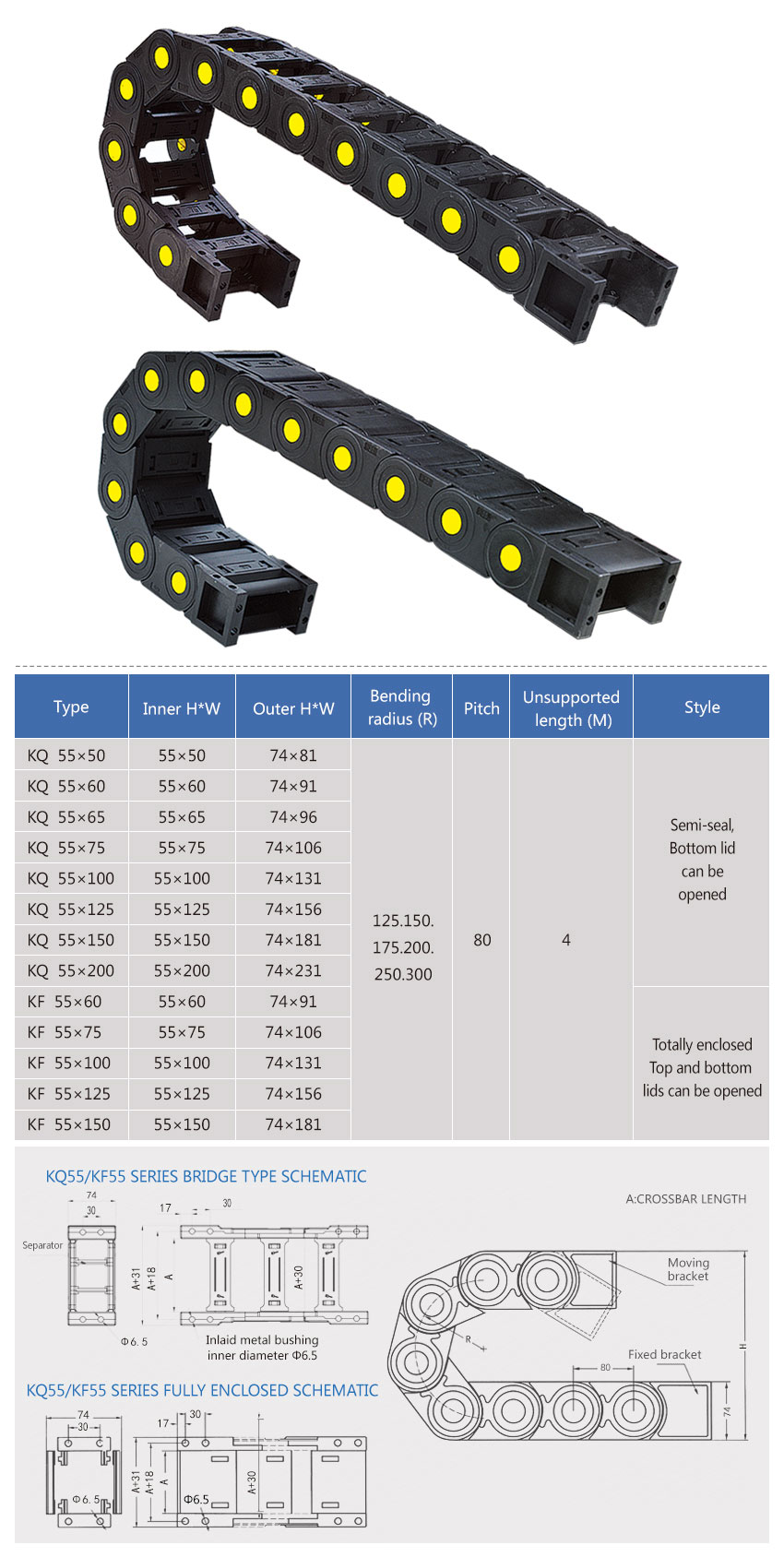

Model table :

Model	Inner H×W (A)	Outer H*W	Style	Bending Radius	Pitch	Unsupported length
KF 55x60	55x60	74x91	Totally enclosed Top and bottom lids can be opened	125.150.175.200.250.300	80	4m
KF55x75	55x75	74x106
KF55x100	55x100	74x131
KF55x125	55x125	74x156
KF55x150	55x150	74x181



Application :

Enclosed cable chain cable carriers for protection against dirt, chips & debris .

KF series fully enclosed cable carriers can be used to protect cables and hoses against hot metal debris, wood chips, dirt and dust generated in steel works, wood-processing plants, pulp factories, textile manufacturing, farming, coal-fired plants, and many other demanding environments. Components exposed to rough operating conditions significantly compromise the service life of cables and hoses resulting in expensive downtime. The need to ensure the reliability of your machine tools calls for the use of chip-resistant products.

The Drag chain has been widely used in CNC machine tools, electronic equipment, fire machinery, stone machinery, glass machinery, doors and windows machinery, injection machines, robots, overweight transportation equipment, automated warehouses and so on.
