ZF35 load bearing high strength cable drag chain

Cable Trays Chain Cable Chain Custom Industrial Moving Plastic Cable Trays Drag Chain

---

Cable and hose carriers are flexible structures made of links that guide and organize moving cable and hose. Carriers enclose the cable or hose and move with them as they travel around machinery or other equipment, protecting them from wear. Cable and hose carriers are modular, so sections may be added or removed as needed without specialized tools. They're used in many settings, including material handling, construction, and general mechanical engineering.

Standard cable and hose carriers have an open design and are used in general purpose applications. Heavy-duty steel cable and hose carriers also have an open construction but are suitable for more demanding environments than standard carriers. Enclosed cable and hose carriers fully encase conductors to provide more protection from debris than open designs. Multiaxis cable and hose carriers turn and flex in any direction and are commonly used in robotics applications.

When designing cable chains care needs be taken when selecting firstly the type of chain/carrier and secondly the type of cables to be fitted to the chain, followed by the layout of the cables in the chain. Most of the major chain manufactures have some documentation detailing how to choose and setup their chains to ensure the longest lifetime of both the chain and its contents. Following those guidelines to the letter would ensure lifetimes typically in the 10 of millions cycles range, but would also produce excessively wide chains that we could not easily fit into our applications.

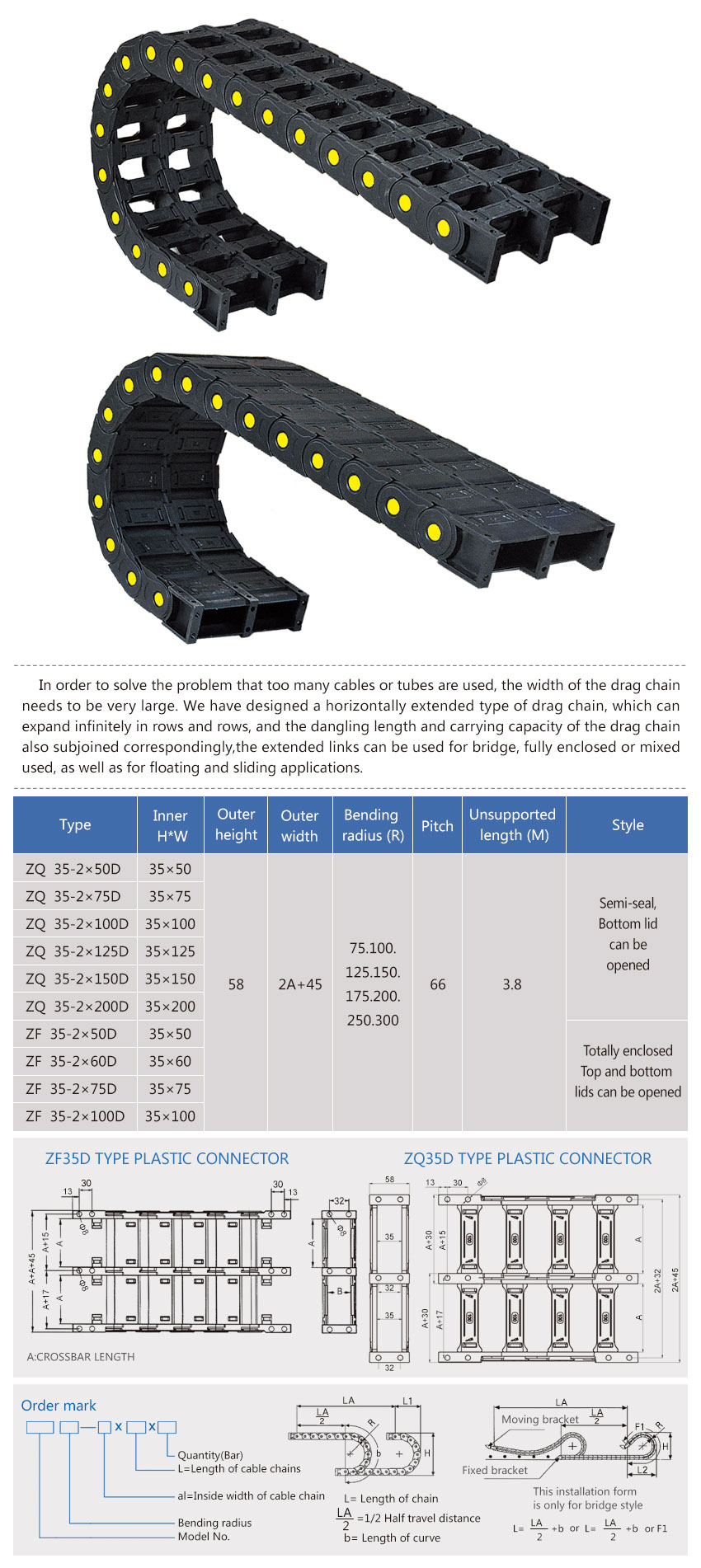

Model table :

Model	Inner H×W(A)	Outer H*W	Style	Bending Radius	Pitch	Unsupported length
ZF 35-2x50	35x50	58X80	Totally enclosed Top and bottom lids can be opened	75.100. 125.150.175.200.250.300	66	3.8m
ZF 35-2x60	35x60	58X90
ZF 35-2x75	35x75	58X105
ZF 35-2x100	35x100	58X130



Application :

 Cable drag chains can be used in a variety of applications, wherever there are moving cables or hoses. there are so many applications include; machine tools, process and automation machinery, vehicle transporters, vehicle washing systems and cranes. Cable drag chains come in an extremely large variety of sizes.
