ZF45 load bearing customizable cable drag chain

nylon closed type protective bridge cable drag chain

---

1. The KF series cable carrier chain is a fully enclosed type. The chains can effectively prevent dust particles and debris generated in high temperature processes from entering the chain. This type of cable chain can be quickly opened along the inside or outside radius, and assembled quickly. The modular design makes it easy to cut or extend the chain length based on application needs.

2. The groove equipped with an separator is able to isolate different energy

sources, making energy transportation safer and more efficient. We suggest

users use an separator  when a: there are different loads such as hydraulic pipes, water pipes, gas pipes and cables, or b: the loads are the same, but the quantity is large.

3. The limiting block has added to the length of the overhead line, which has significantly extended the lift of the cable carrier chain.

Model table :

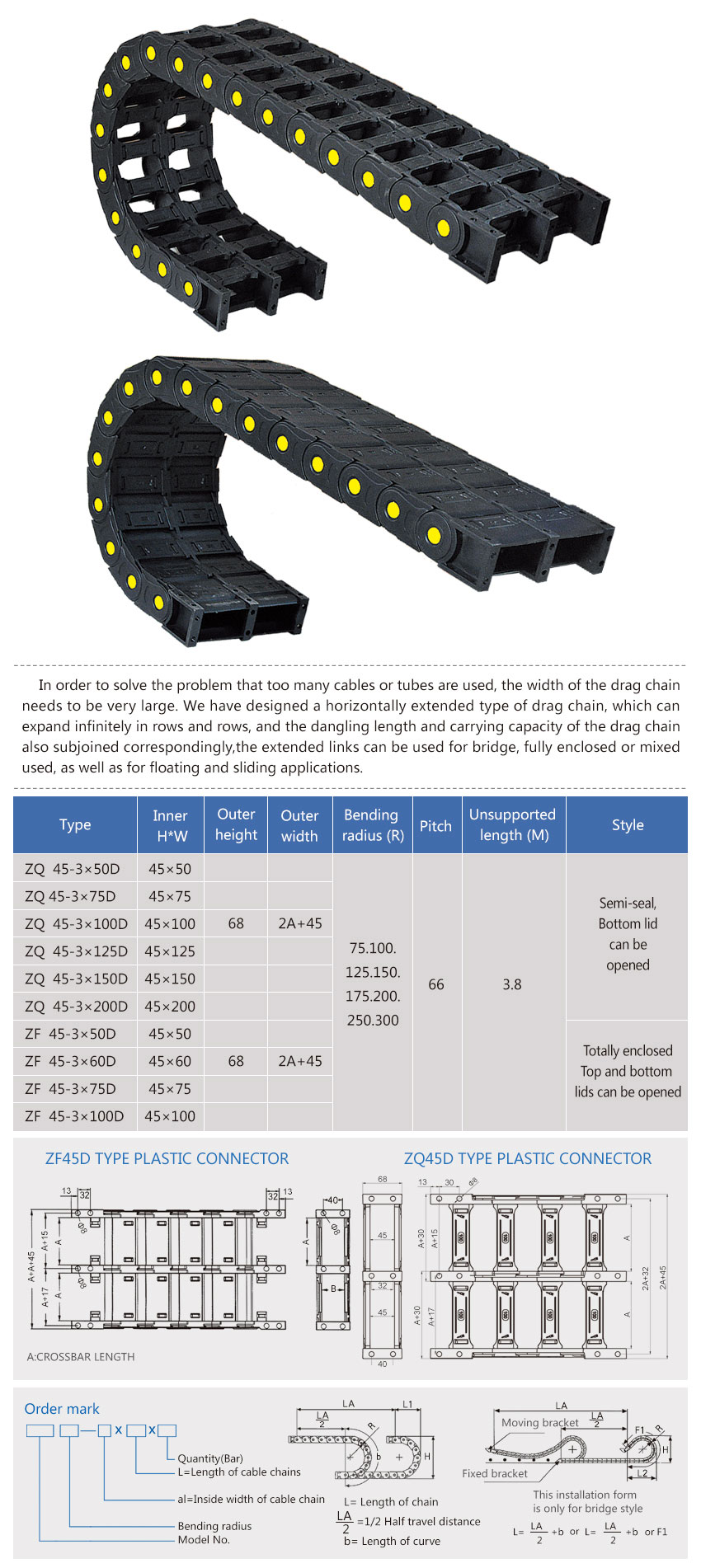

Model	Inner H×W(A)	Outer H*W	Style	Bending Radius	Pitch	Unsupported length
ZF 45-3x50	45x50	68X80	Totally enclosed Top and bottom lids can be opened	75.100. 125.150.175.200.250.300	66	3.8m
ZF 45-3x60	45x60	68X90
ZF 45-3x75	45x75	68X105
ZF 45-3x100	45x100	68X130



Application :

The Drag chain has been widely used in CNC machine tools, electronic equipment, fire machinery, stone machinery, glass machinery, doors and windows machinery, injection machines, robots, overweight transportation equipment, automated warehouses and so on.
