ZF62D double rows type pa66 wire carrier plastic drag chain

Drag Cable Chain Nylon PA66 Bridge Type Plastic Wire Carrier Drag Cable Chain For CNC Machine

---

Product name:Double-row full closed type drag chain

Material: Reinforced nylon PA6 PA66

Inner(HxW）：62*100，62*150，62*250，62*300mm

Bending Radius:150.175,200,250,300.400,500mm

Pitch :100mm

Type:Totally enclosed,top and bottom lids can be opened

Features:

1. Double -row full closed type load bearing drag chain,snap-on drag chain method with tight and firm structure.

2. all products can be assembled in a fully enclosed form according to the requirements of the user's actual application.

3. all products are available with a wide range of bending radii, as well as a choice of widths, quick change and other features.

4. used for a wide range of movements and strokes

5. Long service life under very high loads and in harsh environments;

6. Smooth operation in all environmental and climatic conditions;

7. Chemically resistant;

8. Abrasion-resistant, non-adhesive outer sheath.

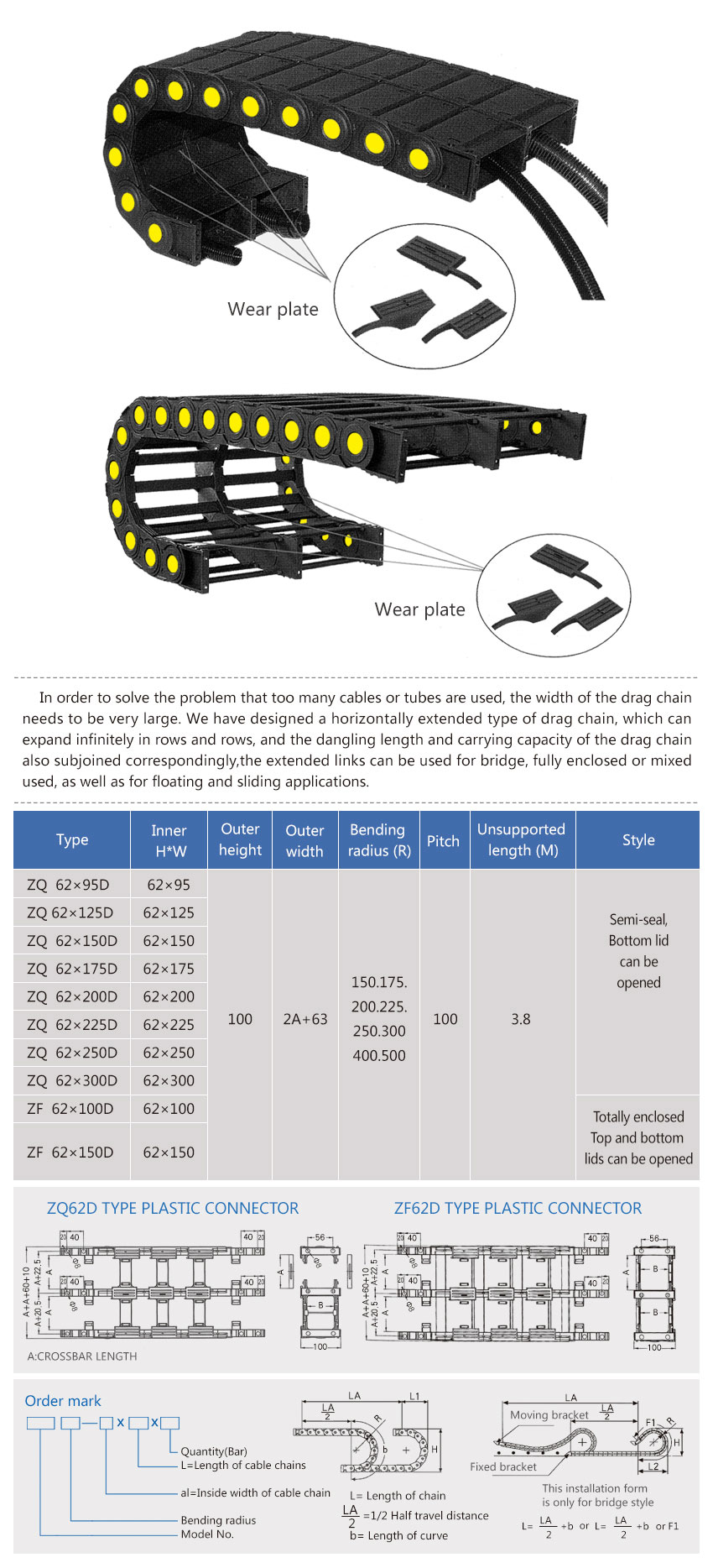

Model table :

Model	Inner H×W(A)	outer H	Outer W	Style	Bending Radius	Pitch	Unsupported length
ZF 62x250D	62x250	100	2A+63	Totally enclosed Top and bottom lids can be opened	150. 175.200.250.300.400.500	100	3.8m
ZF 62x300D	62x300
ZF 62x100D	62x100
ZF 62x150D	62x150



Application :

Double-row plastic drag chains are suitable for all kinds of machine tools such as CNC machine tools, machining centres, automated machines and production lines, robots, transport machines, measuring instruments, handling devices and other drive controls as a protection device for cables, hoses and hoses. The disorganised distribution of cables, hoses and hoses on machine tools is improved by the neat and regular arrangement of the hoses and hoses.

Double rows of fully enclosed drag chains to the machine tool cable and oil pipe, play an effective protection, cleaner, more rigorous structure, noiseless, formed large, fast movement, long life!High and low temperature stability, indoor and outdoor use.
