ZF80 load bearing cable chain carrier drag chain cnc

Direct Factory Long Service Life Reinforced Nylon PA66 CNC Cable Carrier Track Drag Chain

---

The load-bearing engineering drag chain is made of glass fiber reinforced nylon by injection molding, which has the characteristics of load-bearing, wear-resistant, and long-term use. It looks like a tank chain and is composed of many unit links, which can rotate freely between the links. In the selection of engineering towline chains, the inner height, outer height and pitch of the same series are the same, and the inner height and bending radius R can be selected differently. The unit chain link is composed of left and right chain plates and upper and lower cover plates. Each section of the nylon plastic towline can be opened, which is easy to assemble and disassemble. No need to thread. Separators can be provided according to the selection of engineering drag chains to separate the space in the chain as required.

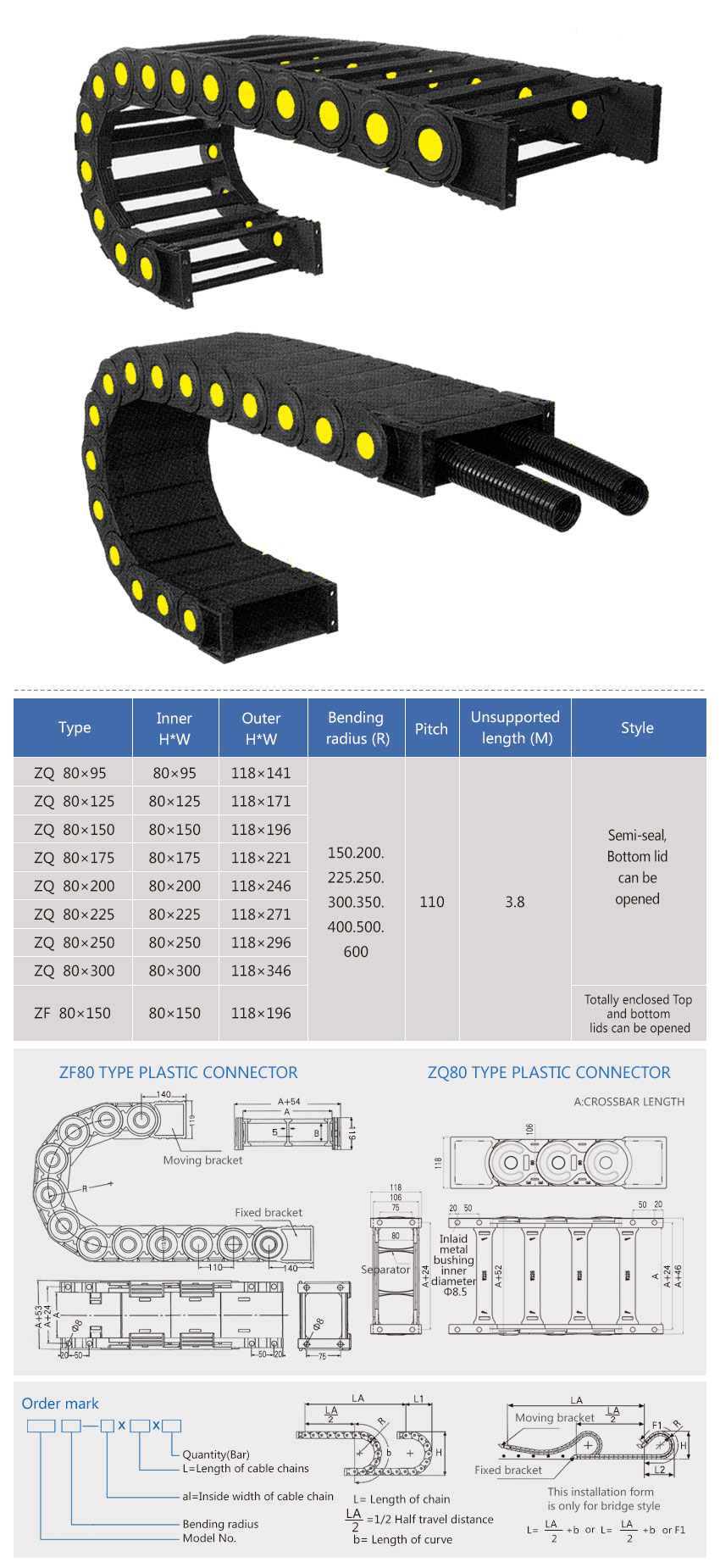

Model table :

Model	Inner H×W(A)	Outer H*W	Style	Bending Radius	Pitch	Unsupported length
ZF 80x150	80x150	118x196	Totally enclosed Top and bottom lids can be opened	150. 200.225.250.300.350.400 500.600	110	3.8m

Application :

It can be used in wood processing, steel mills, pulp mills, textile mills, agriculture in areas with hot chips, dirt and dust, and many other adverse environmental conditions.

JINAO plastic cable drag chain It has been reliably used in thousands of applications around the world - from beverage machines to steel mills. Overhead lengths can be bridged without problems, enabling long-stroke operation in various industrial fields. Offers a modular design so installation is also easy. It has perfect media resistance and is suitable for small installation spaces, large heavy-duty, rigid cables and hoses.
