KQ20 series plastic energy cable chain

Direct Factory Long Service Life Reinforced Nylon PA66 CNC Cable Carrier Track Drag Chain


Cable Drag Chain - The hoses & electrical cables connected to machinery parts in motion may get damaged as direct tension is applied on them; instead the use of Drag Chain eliminates this problem as the tension is applied on Drag Chain thus keeping the Cables & hoses intact & facilitating smooth movement.

Salient features include less weight, low noise, non-conductive, easy handling, non-corrosive, easy of assembly due to snap fitting, maintenance free, available in custom lengths, separators to segregate cables/hoses, can be used for side by side in case number of cables is more, increases cable/hoses life, modular design simplifies cable/hose maintenance.

The Cable Drag Chain Is assemblies of single units that are snap fitted to form chain to specific length.

Stainless cable chain successfully operated in aggressive chemical environment.

At the request of the customer, we complete the cable carrier system the fixing and guide systems in the form of bearing trays, brackets, rollers, etc.

Our advantage is the development of projects and supply assembled drag chains with cables inside.

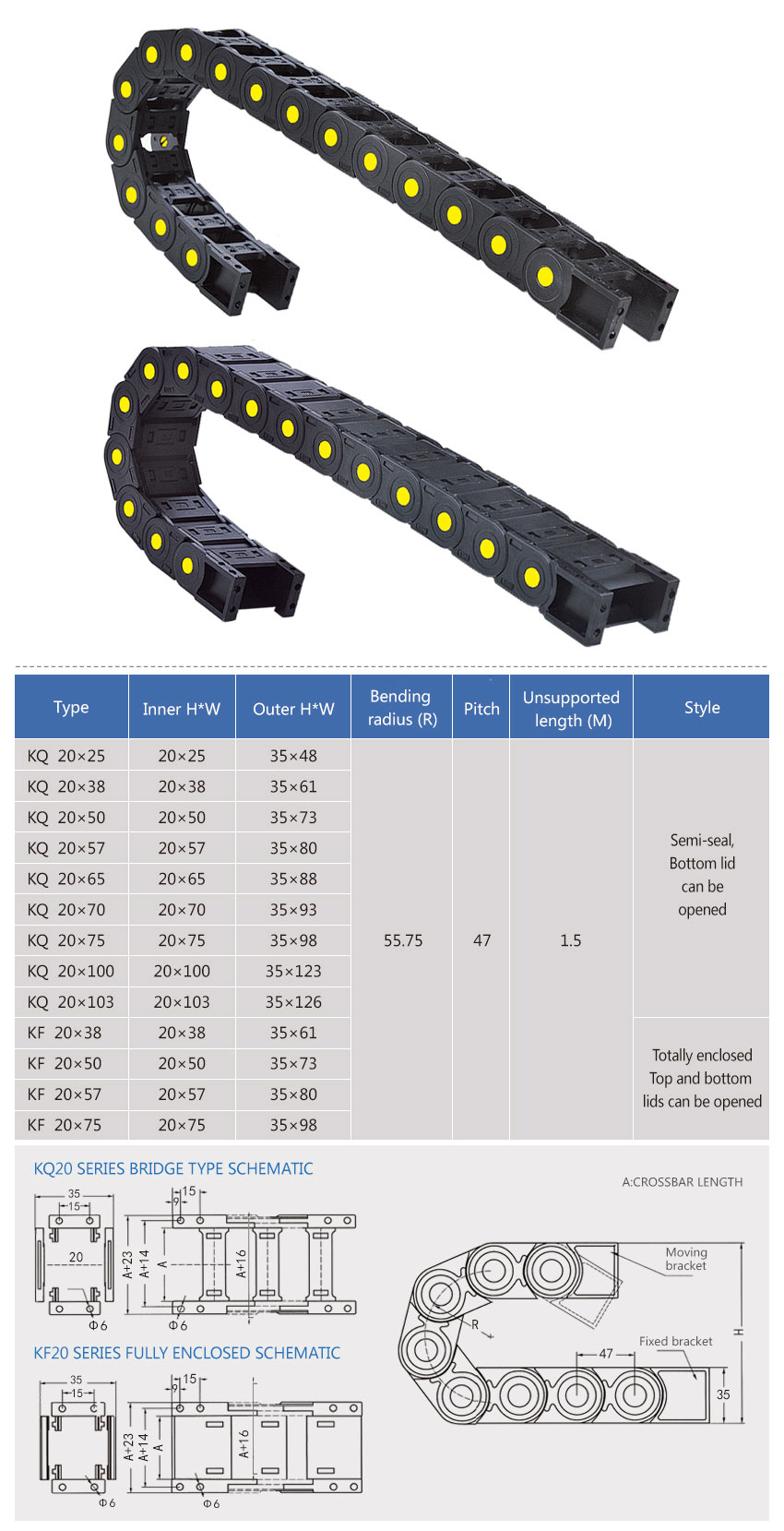

Model table :



Model

Inner H×W

outer H*W

Style

Bending Radius

Pitch

Unsupported length

KQ 20x25

20x25

35x48

Bridge type
Top and bottom lids can be opened

55.75

47

1.5m

KQ 20x38

20x38

35x61

KQ 20x50

20x50

35x73

KQ 20x57

20x57

35x80

KQ 20x65

20x65

35x88

KQ 20x70

20x70

35x93

KQ 20x75

20x75

35x98

KQ 20x100

20x100

35x123

KQ 20x103

20x103

35x126




Application :

Cable drag chains can be used in a variety of applications, wherever there are moving cables or hoses. there are so many applications include; machine tools, process and automation machinery, vehicle transporters, vehicle washing systems and cranes. Cable drag chains come in an extremely large variety of sizes.
