ZQ35 load bearing reinforced bridge drag chain

Flexibility plastic drag chain for guide and protect moving cables

---

Cable Drag Chain - The hoses & electrical cables connected to machinery parts in motion may get damaged as direct tension is applied on them; instead the use of Drag Chain eliminates this problem as the tension is applied on Drag Chain thus keeping the Cables & hoses intact & facilitating smooth movement.

When designing cable chains care needs be taken when selecting firstly the type of chain/carrier and secondly the type of cables to be fitted to the chain, followed by the layout of the cables in the chain. Most of the major chain manufactures have some documentation detailing how to choose and setup their chains to ensure the longest lifetime of both the chain and its contents. Following those guidelines to the letter would ensure lifetimes typically in the 10 of millions cycles range, but would also produce excessively wide chains that we could not easily fit into our applications.

advantage:

high degree of protection against mechanical damage of different conductors,

high-speed movement of equipment and machinery,

the ability to use the whole length of the track as a work area.

Trucking current feeder is a necessary component of any industrial machinery, machine tool, crane, - cables, wires, hydraulic and pneumatic hoses, which are constantly exposed to mechanical and climatic influences.

Plastic and steel energy chains may be used in a temperature range from -40 ° C to + 130 ° C.

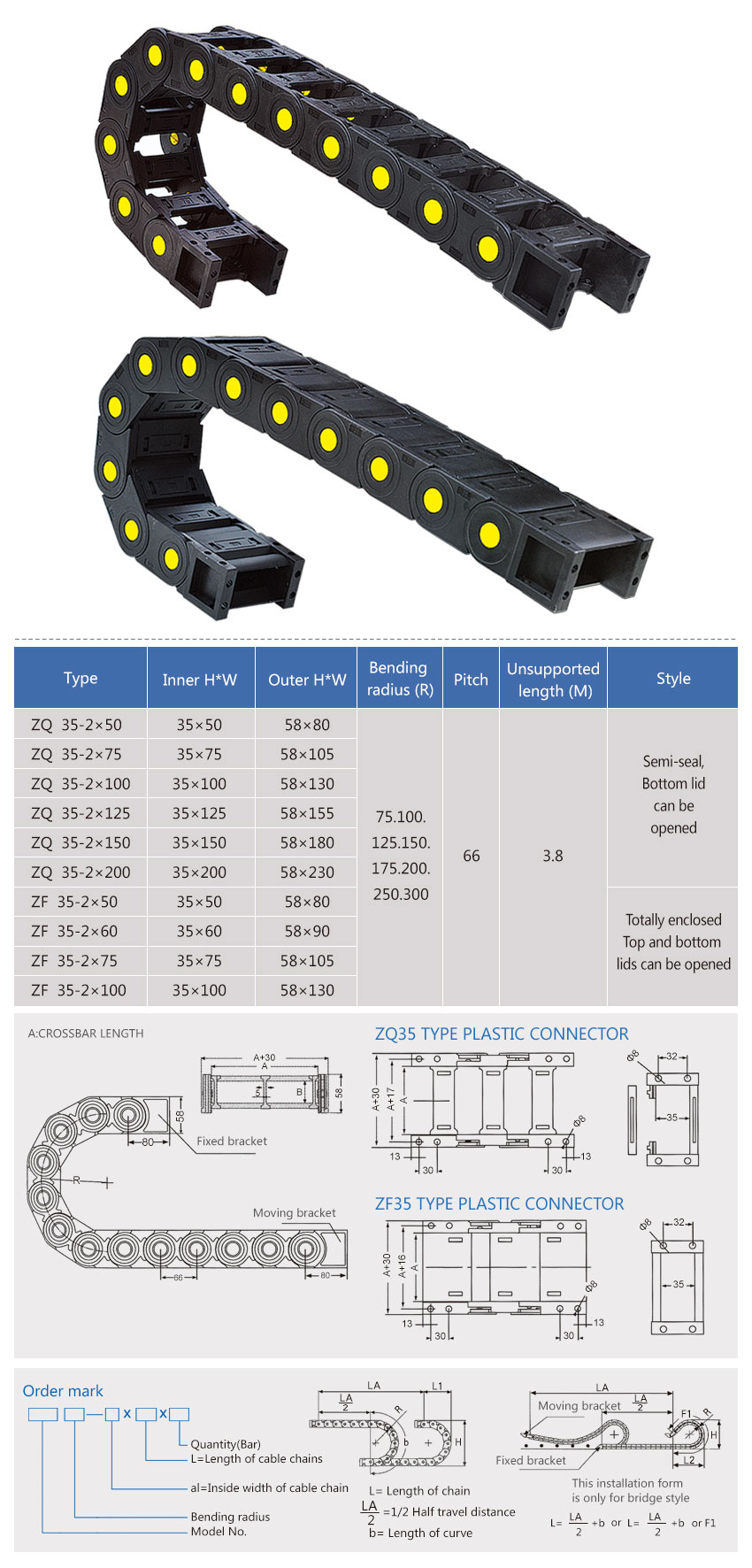

Model table :

Model	Inner H×W(A)	outer H*W	Style	Bending Radius	Pitch	Unsupported length
ZQ 35-2x50	35x50	58X80	Bridge type Top and bottom lids can be opened	75.100. 125.150.175.200.250.300	66	3.8m
ZQ 35-2x75	35x75	58X105
ZQ 35-2x100	35x100	58X130
ZQ 35-2x125	35x125	58X155
ZQ 35-2x150	35x150	58X180
ZQ 35-2x200	35x200	58X230



Application :

Cable drag chains can be used in a variety of applications, wherever there are moving cables or hoses. there are so many applications include; machine tools, process and automation machinery, vehicle transporters, vehicle washing systems and cranes. Cable drag chains come in an extremely large variety of sizes.
