ZQ45 load bearing cable ladder chain carrier drag chain

Gold supplier High quality nylon cable carrier customized bridge type plastic drag chain

---

Basic parameters of heavy-duty plastic drag chains

(1) Material: Reinforced nylon, with high pressure and tensile load, good toughness, high elasticity and wear resistance, flame retardant, stable performance at high and low temperature, and can be used outdoors. The amount of nylon content determines the strength and wear resistance of the drag chain, as well as the noise when running. The nylon content varies from 5% to 17%, but does not exceed 19%. Generally, the content is about 30%.

(2) Resistance: oil resistance, salt resistance, and certain acid and alkali resistance.

(3) Running speed and maximum speed: the maximum speed can reach 5 m/s, and the maximum acceleration can be 5 m/s (the specific speed and acceleration depend on the operating conditions).

(4) Operating life: under normal overhead use, the number of reciprocating movements can reach 5 million (the specific life depends on the operating conditions).

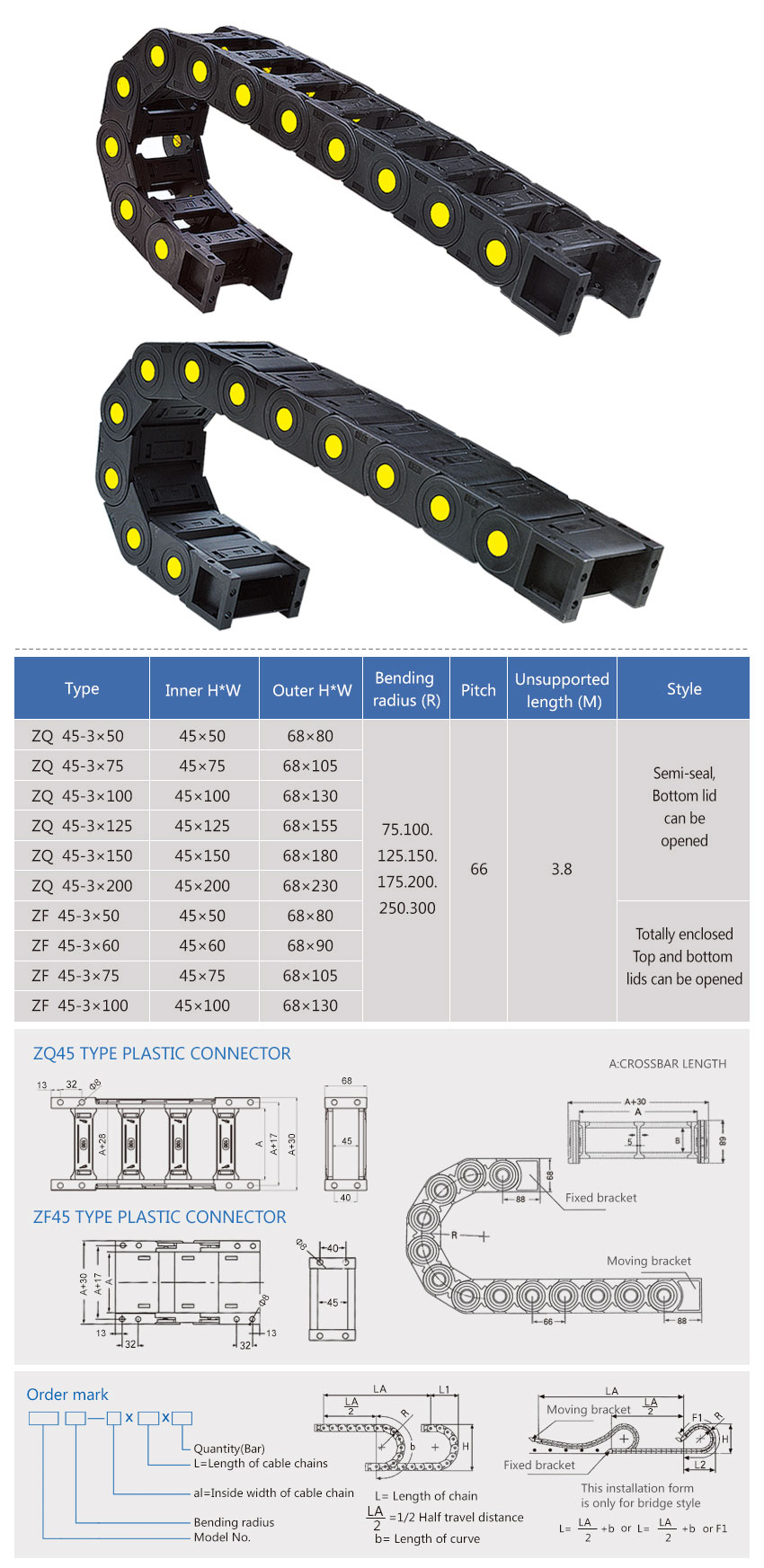

Model table :

Model	Inner H×W(A)	outer H*W	Style	Bending Radius	Pitch	Unsupported length
ZQ 45-3x50	45x50	68X80	Bridge type Top and bottom lids can be opened	75.100. 125.150.175.200.250.300	66	3.8m
ZQ 45-3x75	45x75	68X105
ZQ 45-3x100	45x100	68X130
ZQ 45-3x125	45x125	68X155
ZQ 45-3x150	45x150	68X180
ZQ 45-3x200	45x200	68X230



Application :

The heavy-duty engineering plastic towline is better in material and thicker than ordinary plastic towline. It is suitable for places where there are many mechanical cables in the machine tool or where heavy objects need to be pressed on the towline. Long service life. The exquisite design of the middle yellow shaft makes the drag chain itself more beautiful. While providing use value to the machine tool, it also increases the overall aesthetics of the machine tool.
